042 Laser TEA N2 2MW PRA LN1000

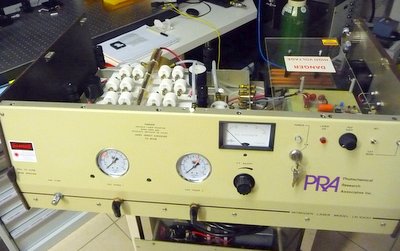

The PRA LN1000, the most powerfull commercial nitrogen laser,offer a 2MW output pulse of 600ps duration.

The compact beam assure high power densities.
The pulse reproductibility (few percent amplitude jitter) is excellent!

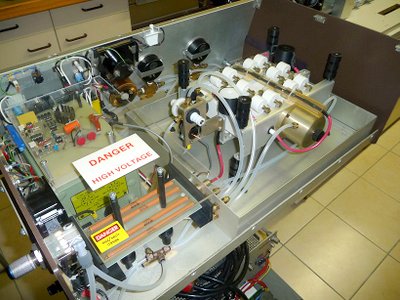

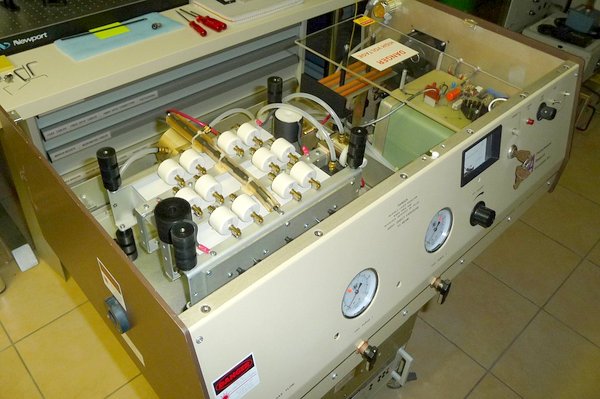

This laser is a result of the development of Arnold Neracher based ceramic capacitors.


Caracteristics

2MW output power in 600ps
Energy per pulse 1.3mJ
Rep.rate 0-20 Hz
Beam section 3x6mm
Divergence 3x7mrad







Video

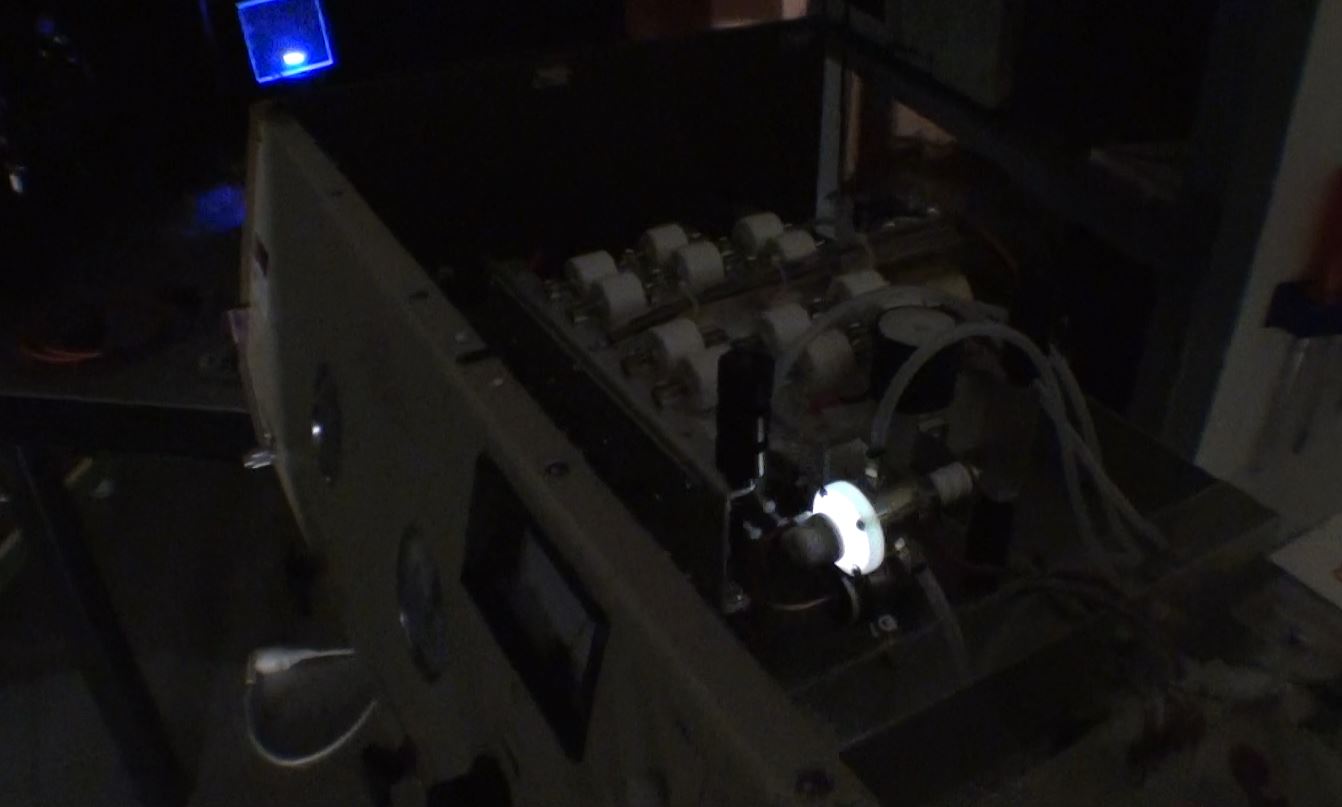

laser dye pumping with LN1000
