Petit laser YAG déclenché pompé par flash

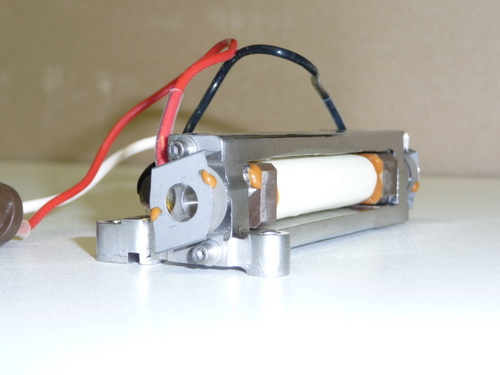

This small Nd:YAG laser head . It includes a flashlamp with external trigger, YAG rod, passive Q-switch, and mirrors, all in a package about 25x25x105 mm

• Type: Nd:YAG rod, AR coated ends.
• Rod diameter: about 4 mm.
• Rod length: about 50 mm.
• Lasing threshold: less than 7.5 J (100 us pulse duration).

Flashlamp - FXQG-264-1.4 Arc length: 35 mm

• Outside diameter: 5 mm.
• Inside diameter: 3 mm.
• Overall length: 70 mm.
• Ko impedance parameter: 18 ohms-amp0.5
• Minimum voltage 300 V.
• Maximum voltage 1,000 V.
• Maximum energy input at 100 us pulse duration32J
• Capacitor  100 uF  inductance 250 uH

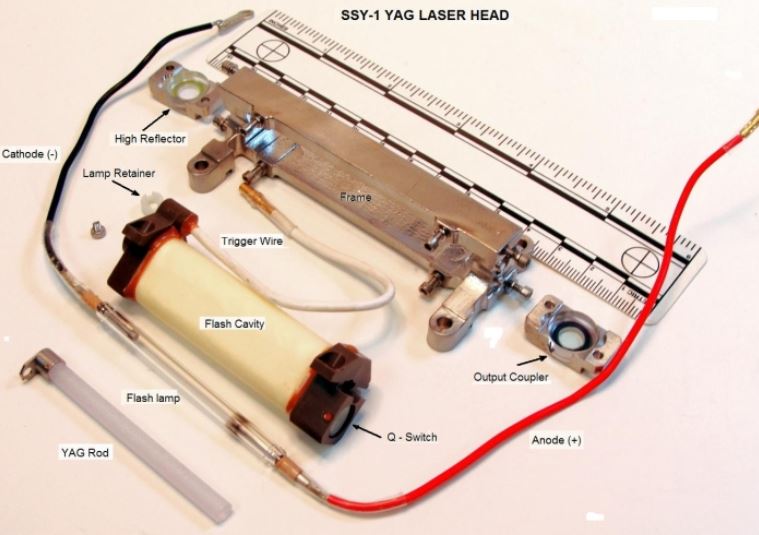

It includes a flashlamp with external trigger, YAG rod, passive Q-switch, and mirrors,

  Arc length: 35 mm (about 1.4 inches).

  Outside diameter: 5 mm.

  Inside diameter: 3 mm.

  Overall length: 75 mm.

  Ko impedance parameter: 16 ohms-amp0.5 (estimated).

  Flashlamp envelope: quartz.

  Electrodes: machined solid tungsten.

  Minimum voltage: less than 300 V.

  Maximum voltage: greater than 1,000 V.

  Maximum energy input at 100 us pulse duration: 25 J (guessed!).

  Recommended energy input at 100 us pulse duration: 15 J at 900 V.

  Maximum average power input: 7 W (estimated).

  Trigger: External trigger electrode (white wire).
